- Structure:Taper
- Type:Roller
- Place of Origin:CN
- Model Number:30213
- Brand Name:SILL
- Precision Rating:ABEC-1,ABEC-3,ABEC-5
- Number of Row:Single Row

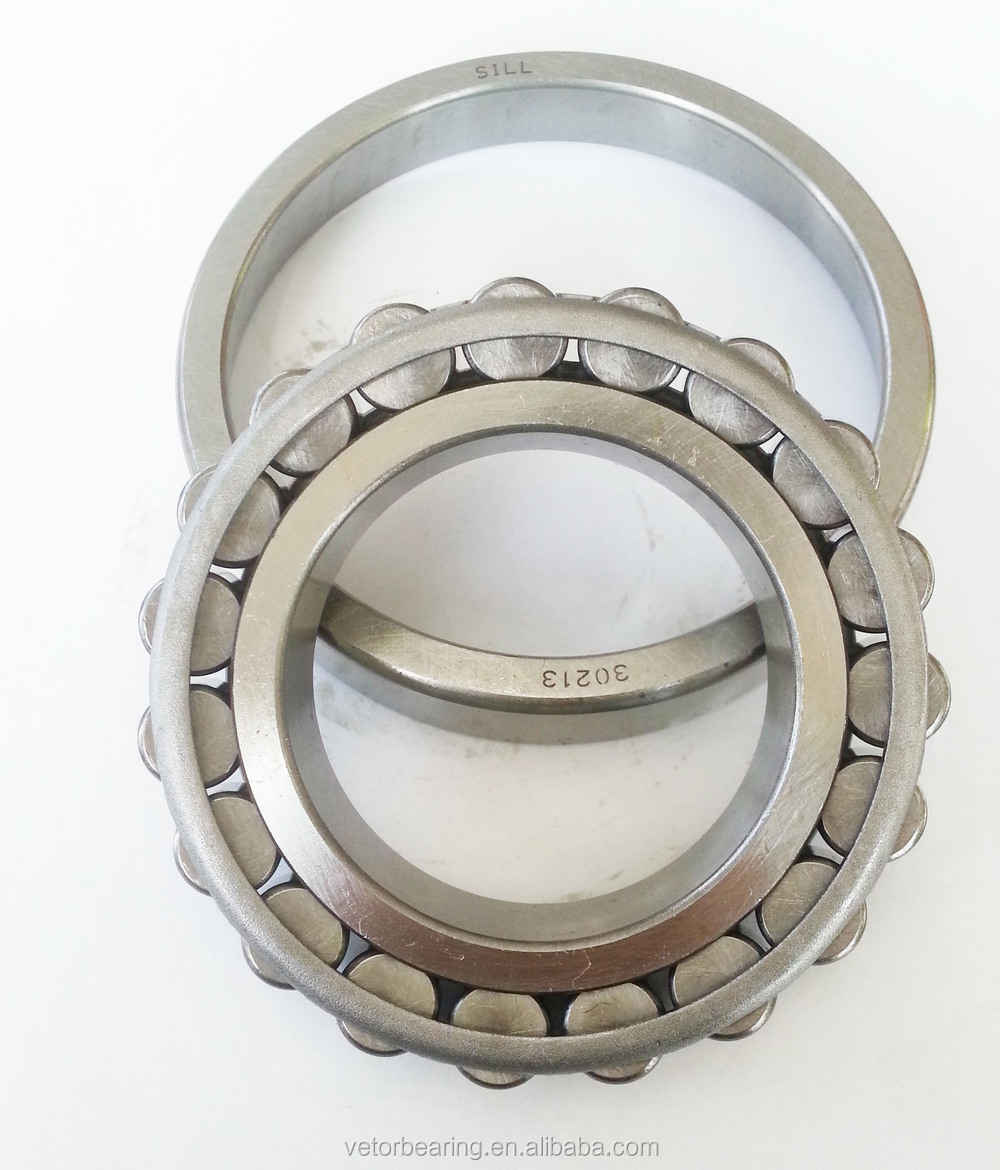

Taper Roller Bearing:
Tapered roller bearings mainly burden the joint load from radial and shaft side. This kind of bearings hasstrong load capability. It belongs to separated bearing; its inner components and outer components can beequipped individually.On small and medium sized dimensions, our tapered roller bearings use P5 orequivalent techniques; and adopt entire convexity design.
Features :
The inner and outer ring raceways and rollers of these bearings are made with a taper so that the surface planes of the raceways and roller axis meet at a point. The rollers are guided by a flange on the inner ring. Tapered roller bearings are separable, and have the following components: outer ring, inner ring and roller assembly. The non-separable inner ring and roller assembly is called the 'cone', and the outer ring is called the 'cup'. Internal clearance established during mounting by the axial position of the cone relative to the cup.
Packing | Industrial packing/Single box, Then colorful carton, Then wooden pallet |
Service | OEM or other requirement like black corner etc. |
Company Information | www.sillbearing.com |
